Description
Designed and built to be the highest quality compact hose reel on the market.

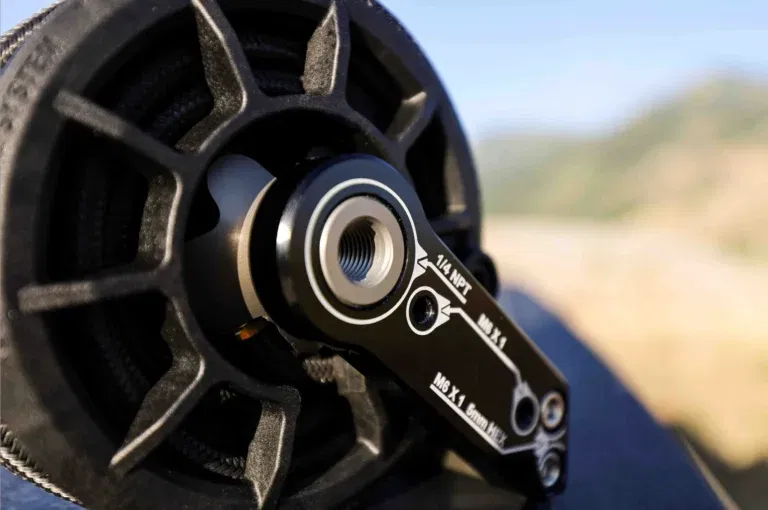

If you want a fast and convenient way to air up your tyres, then you need to check out the Apex Designs Compact Reel System.
Often referred to as the ‘Air Compressor Wind Up Hose Reel’, this brilliant concept was invented by the team at Apex Designs USA and holds the patent on this product. The Apex Designs Compact Reel System is designed and built to be the highest quality compact hose reel on the market.
Our Compact Air Hose Reel System is highly resistant to UV and chemicals, with fade-free anodised surfaces to make sure that your investment to the Apex Designs Compact Reel System will continue to look great in the years to come.
Simply rotate the lock mechanism counter-clockwise and begin pulling out your hose. Wind it up when you’re done and twist the lock clockwise and you are good to go!
Better still, the Apex Designs Compact Reel System is the only system on the market that comes in a 6 metre (20′) and 10 metre (35′) version.
- The 10 Metre version is perfect for those with an American Truck and also need the option to reach a caravan.

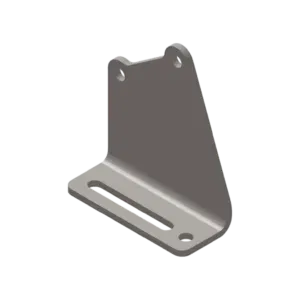

NOTE:Â Due to the versatility of the Compact Reel System, the Mounting Brackets and Connection Hoses / Adaptors are sold separately.
SIGNATURE FEATURES
- High impact DuPont glass filled nylon 66 reel guide
- Highly resistant to UV and chemicals
- 6061-t6 aluminum with wear resistant and fade free hard anodized surface
- Viton seals seals for high temperature environments and resistant to chemicals
- Nitrile hose with nylon over braid: Allows for compact designs, abrasion restraint with high burst pressure all while maintaining flexibility at cold temps and high burst pressures at 200F
- Compact and Universal mounting options
- Rattle Free
- Greased and sealed aluminum knob
- Rebuildable with the ability to cut and fix hose in the field with only a knife.
- Flow matched for high flow APEX valves. Very low back pressure when using onboard air systems.
MOUNTING BRACKETS AND CHUCKS ARE SOLD SEPARATELY.
Install Instructions Here & Here

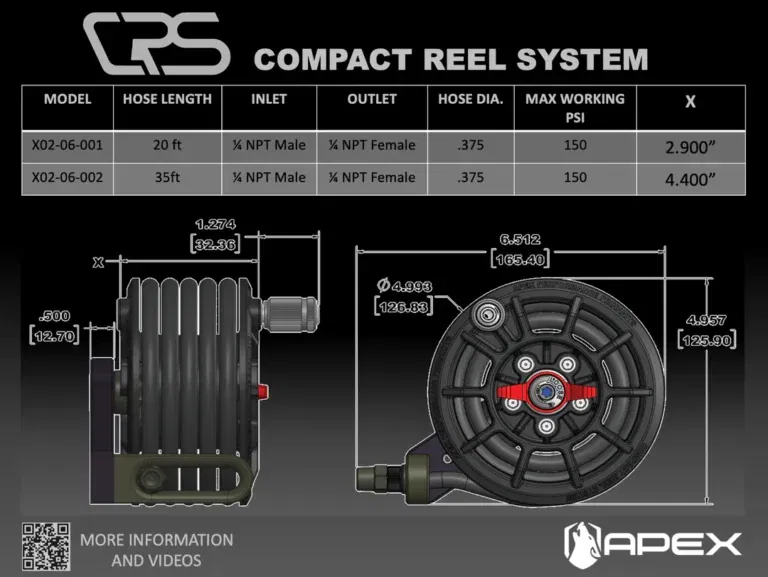

Part Number: X02-06-001 / X02-06-002
