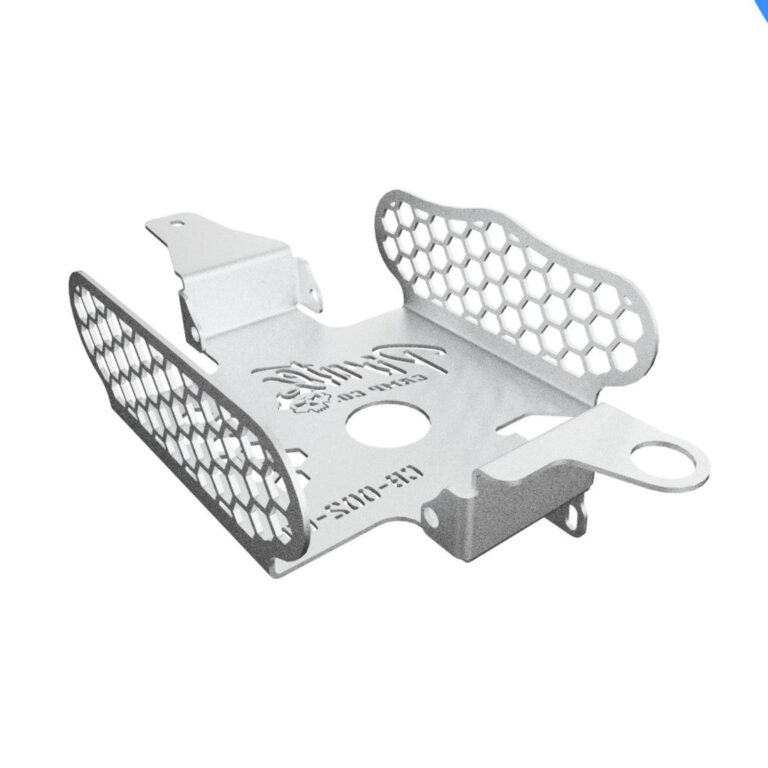

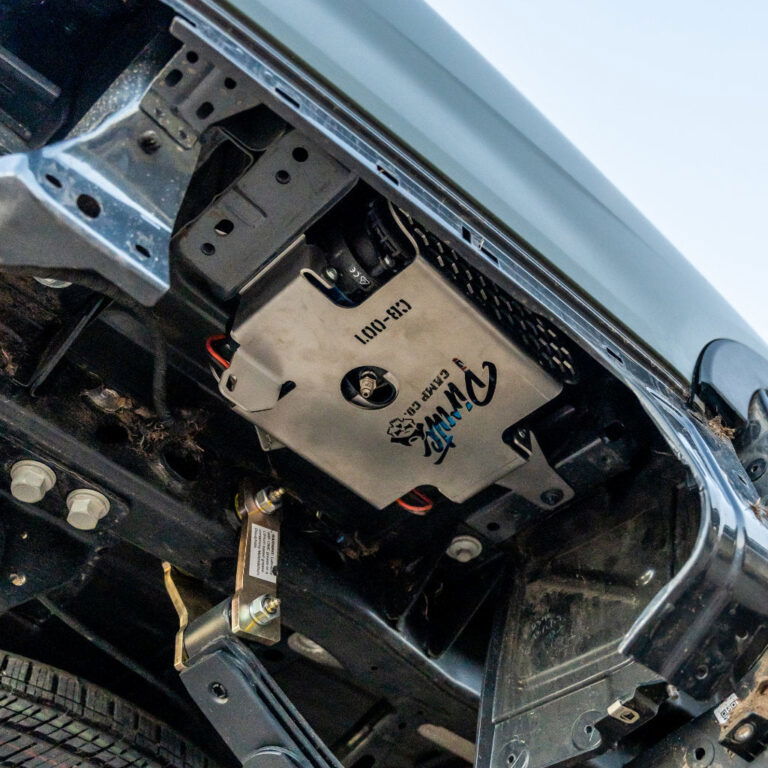

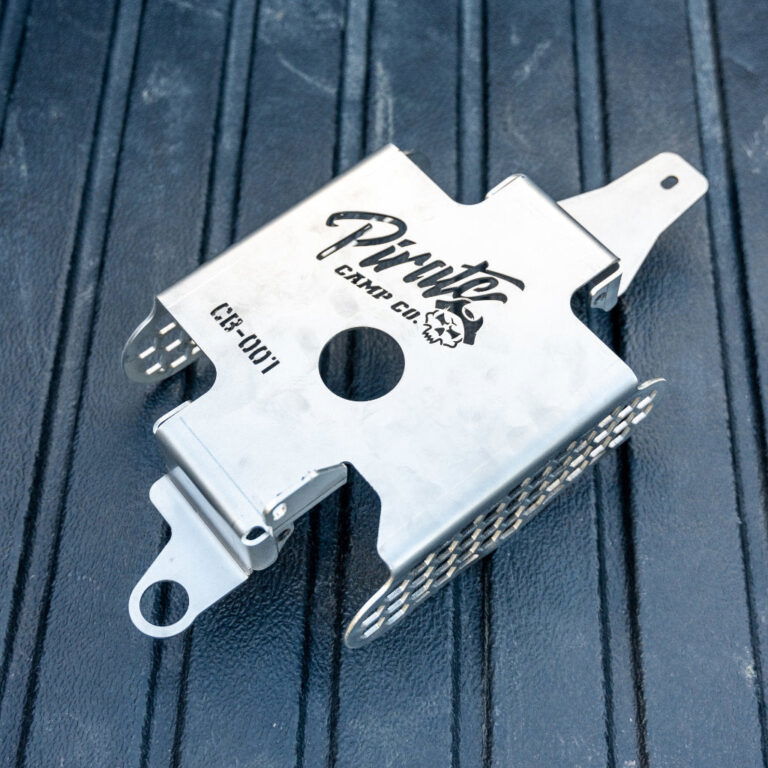

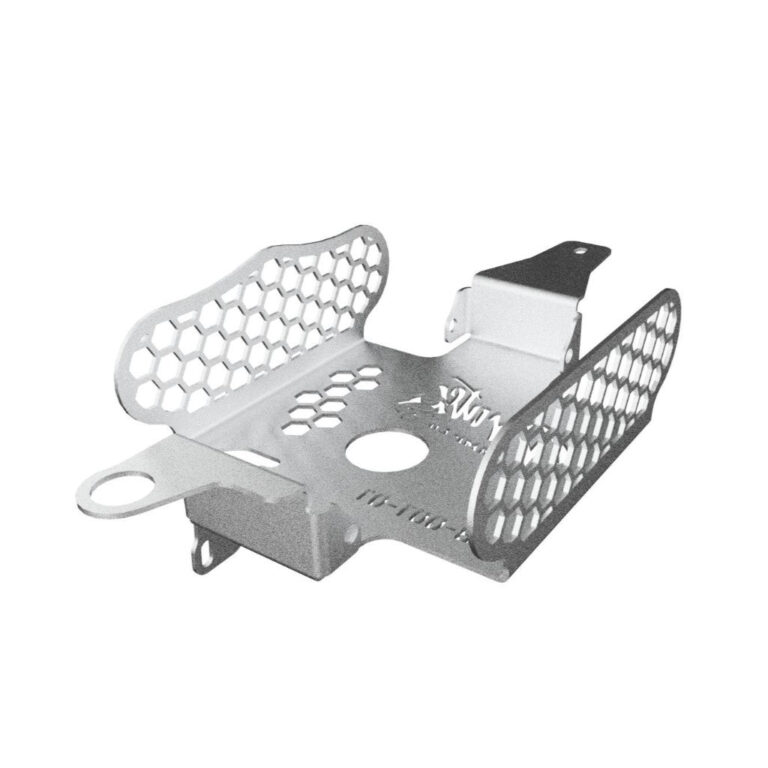

Dual ARB Air Compressor Under-Tub Mount for Ford Ranger

Description

Suited to Next-Gen Ford Ranger models: XL, XLS, XLT, Sport, Wildtrak

Looking for a discreet location to mount your dual ARB air compressor? We have the solution for you.
Full bolt in utilising factory bolt holes & captive nuts. NO drilling, NO modifications, NO cutting… nothing.

1 x Dual ARB compressor under tub mount
Stainless steel 304gr
Precision laser cut & CNC folded
Suits Next-Gen Ford Ranger & Raptor
100% Australian made & owned
Easy installation
Below is a list of components you could use to complete your installation:

Pirate Camp Co. Loaded Tub Switch Panel – With or Without Factory Roller Shutter
Pirate Camp Co. Behind the Taillight Filter Relocation Bracket
ARB Twin Compressor – Part No. CKMTA12
One (1) ARB 90o Jic-4 Elbow Fittings – Part No. 0740104
One (1) ARB US Std. Jic-4 Hose Coupling – Part No. 0740107
3m of ARB Jic-4 Reinforced Hose – Part No. 0740206 (Starboard Side Mount)
1m of ARB Jic-4 Reinforced Hose – Part No. 0740203 (Port Side Mount)
Two (2) 6mm Push-In Fittings
Two (2) 6mm Push-In Bulkhead Fittings
1.5m of 6mm Hose
Pirate Camp Co – Part Number – CB-001
