Description

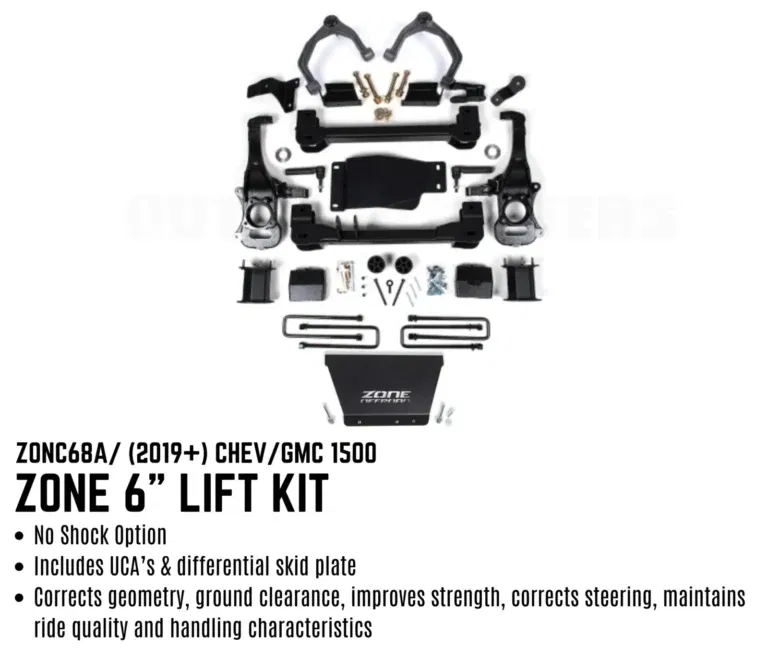

Zone 6″ Lift Kit with UCAs and Skid Plate

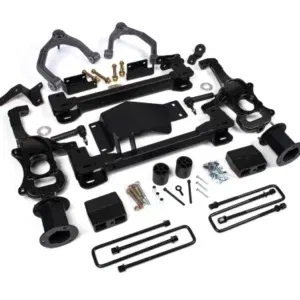

Take your Silverado/Sierra 1500 to new heights with this 6″ lift kit from Zone Offroad. Kits include everything needed from high strength crossmembers and steering knuckles to strut spacers, Adventure Series upper control arms and differential relocation brackets to maintain driveline angles. Get the look, performance, and capability your truck deserves with clearance for up to 35″ tires.
Available with Outback Kitters 2.5″ Remote Reservoir Shocks, Fox 2.0 Performance Shocks or without shocks for you to source an alternative brand.
Outback Kitters 2.5″ Remote Reservoir Shocks
Our shocks have been refined to withstand the harsh Australian conditions.

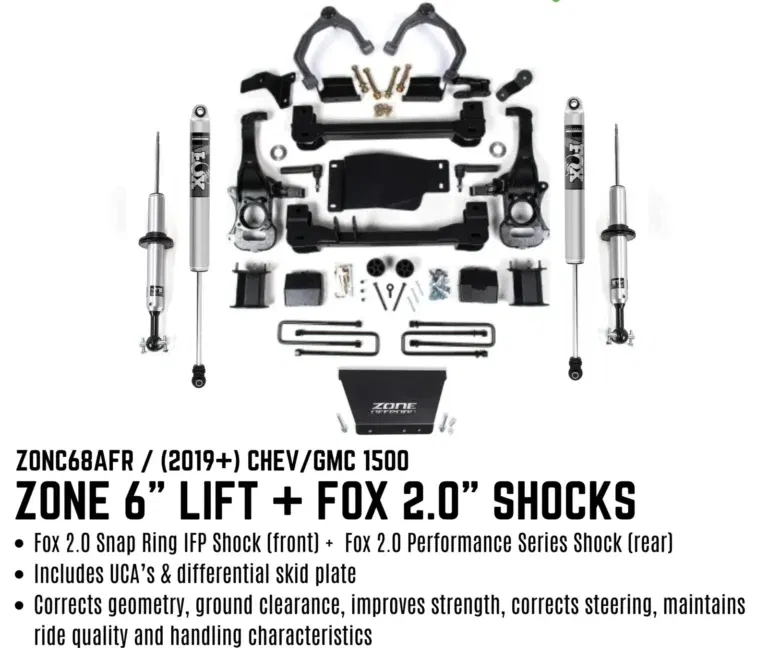

Fox 2.0″ Performance Shocks
Improve on-road comfort and off-road control with FOX Performance Series 2.0 IFP (internal floating piston) shocks. The mono-tube design’s internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.
A custom-molded spring seat allows the use of your stock spring and mounting hardware. The precision, impact-extruded 2-inch aluminum body is lightweight and rust resistant.
TYRE & WHEEL COMBINATIONS
Chevy:
- 33 x 12.50 on 17×8, 17×9 w/ 4.5″ BS*
- 33 x 12.50 on 20×9, 22×9 w/ 4.5-6.25″ BS*
- 35 x 12.50 on 20×9, 22×9 w/ 5.5-6.25″ BS*
GMC:
- 295/65 on 17×8, 17×9 w/ 4.5″ BS*
- 295/60 on 20×9 w/ 4.5-6.25″ BS*
- 35 x 12.50 on 20×9, 22×9 w/ 5.5-6.25″ BS** Trimming is required
*Trimming may be required
IMPORTANT NOTES
- Stock 17″ and 18″ wheels cannot be reinstalled due to tie rod end interference, stock 20″ wheels CAN be reinstalled.
- 17″ wheels with 4.5″ backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod.
- All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper.
- Fits Petrol and Diesel Models.
- Optional front skid plate will not work with 2.7L Turbo or Diesel Engines.
- Requires frame bracket modification.
- Will NOT work with Adaptive Ride Control (ARC) equipped models (Use ZONC70 or ZONC72).
- Will NOT work with Trail Boss or AT4 models.
- Will NOT work with 2019-2020 1500 Classic Models.
- Will NOT work with Silverado ZR2 or Sierra AT4X models (Use ZONC73).
- Will NOT fit models with a single leaf spring (mono-leaf) rear suspension.
- This system has not been tested on models equipped with Super Cruise.
SPECIFICATIONS
- Front Lift Height: 6″
- Rear Lift Height: 5″
- Front Lift Method: Knucles & Drop / Cross-Member
- Rear Lift Method: Cast Blocks
- Material: Steel
- Lift Type: Lift Kit
- Wheel Size: See Notes
- Back Spacing: See Notes
- Max Tire Size: See Notes
- Is Adjustable: No
- Finish: Powdercoat
- Cutting Required: Yes
- Accommodates Factory Wheels: See Notes
- Welding Required: Yes
INSTALLATION
- Installation Guide: Download
- Estimated time: 8 hours
- Difficulty Level: Moderately-Hard
REQUIRED TOOLS
- Reciprocating Saw
- Welding Equipment
- 36mm Socket
- Grinder/Sanding Disc
