Description

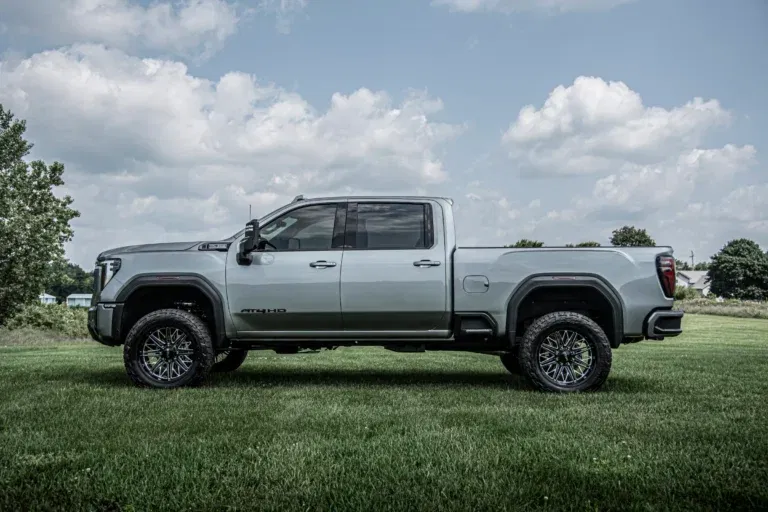

Up the ante in your 2020-2024 Chevy Silverado and GMC Sierra 2500 HD 4WD truck and improve the ride with this 3-inch lift kit featuring FOX 2.0 IFP Performance Series or 2.5 Performance Elite shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35″ tires. These kits feature proprietary FOX 2.0 IFP Performance Series or 2.5 Performance Elite shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort.

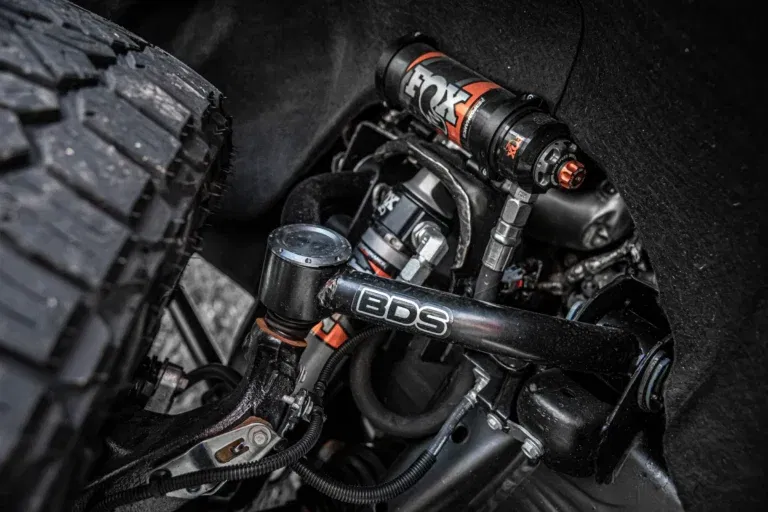

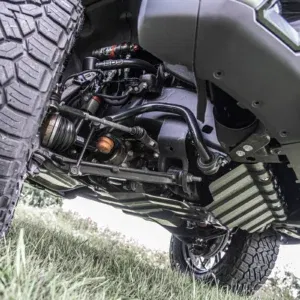

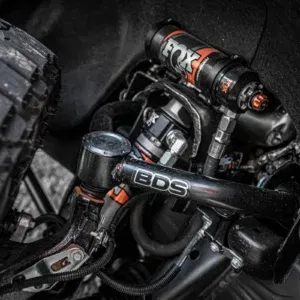

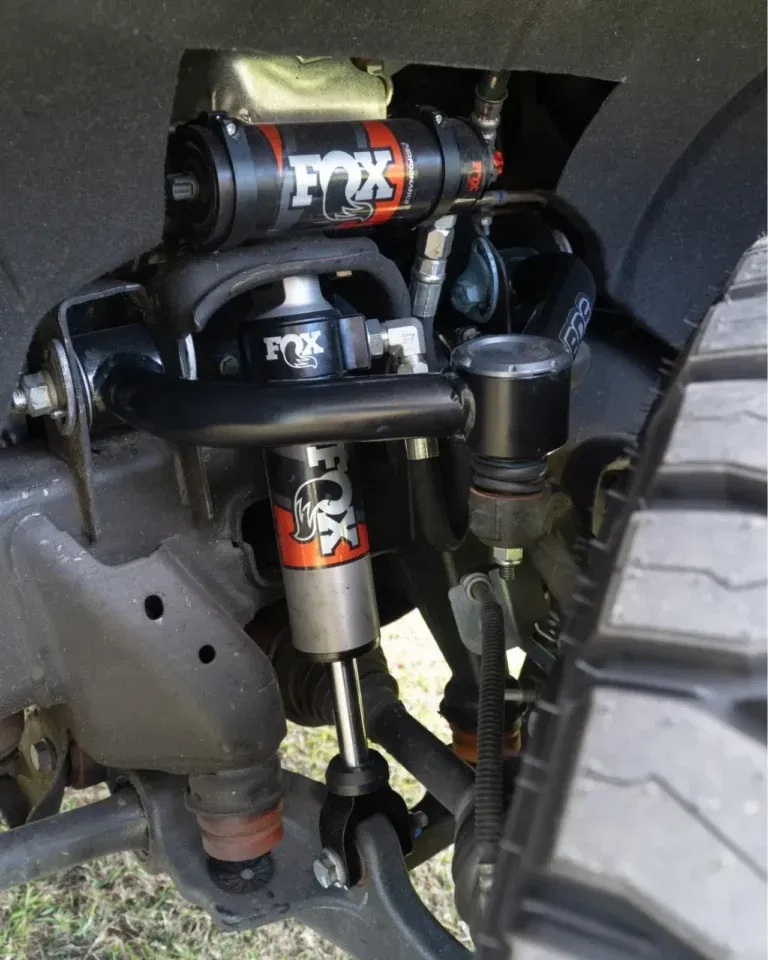

Up front the lift kit includes FOX 2.0 IFP Performance Series or 2.5 Performance Elite reservoir shocks and heavy duty tubular upper control arms for increased strength. Along with the control arms, a pair of indexed cast steel torsion bar keys are supplied upfront to lift the vehicle and a small differential relocation kit is supplied to correct CV axle operating angles without affecting ground clearance. To eliminate sway bar interference, a pair of sway bar relocation brackets is used which maintains proper operating angle.
In the rear, a 2″ block and u-bolt kit is used to create a level to slightly tail high stance when unloaded. Rounding out these kits are a pair of specially tuned FOX 2.0 IFP Performance Series or 2.5 Performance Elite reservoir shocks ready to soak up the terrain.

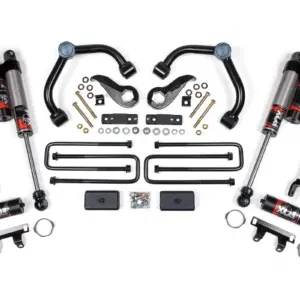

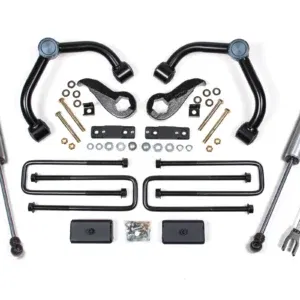

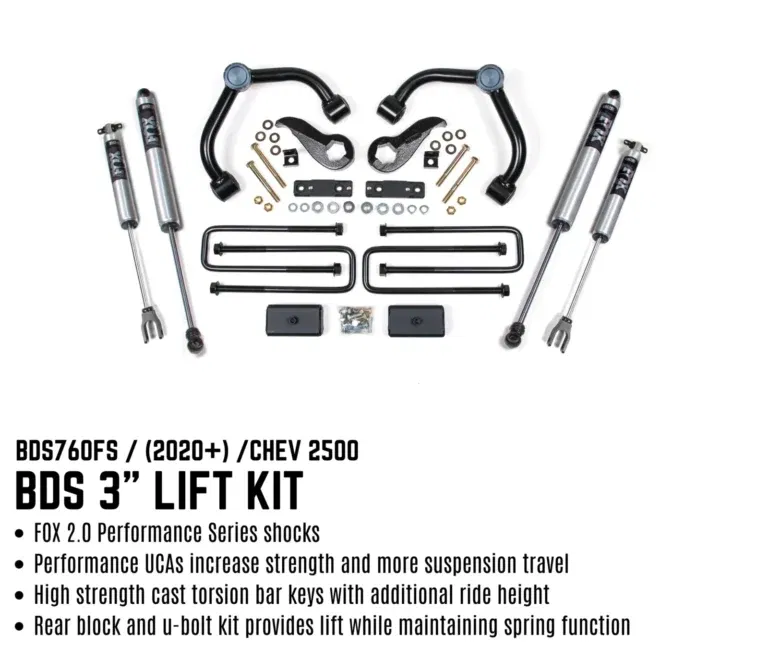

This nifty lift kit includes:
- Front & Rear Shocks
- Rear Spacer Block
- Upper Control Arms
- Torsion Bar Keys
SHOCK OPTIONS
- Fox 2.5″ Remote Reservoir Performance Elite Shocks with DSC
- Fox 2.0″ Performance Series
SPECIFICATIONS
- Front Lift Method : Torsion Key
- Rear Lift Method : Block
- Shocks Included : Yes
- Front Lift Height : 3″
- Rear Lift Height : 2″
TYRE & WHEEL COMBINATIONS
- *Trimming may be required*
- 295/60 w/ 20×9 and 5.5-5.75″ back spacing
- 285/65 w/ 20×9 and 5.5-5.75″ back spacing
- 35×12.5 w/ 20×9 and 5.5-5.75″ back spacing
IMPORTANT NOTES
- Australian converted vehicles may need additional customisation for the mounting of the shocks.
- Factory 17-18″ wheels cannot be reinstalled due to tie rod end interference, stock 20″ wheels can be reinstalled with up to a 35×12.50 tire.
- In some cases vehicles used in 4WD on the highway regularly could potentially experience a minor front driveline vibration. If this occurs we recommend replacing the front driveshaft with a dual Cardan style driveshaft.
INSTALLATION
- Installation Guide: Download
- Estimated Time: 8 – 10 hours
- Difficultly Level: Moderate
