Description

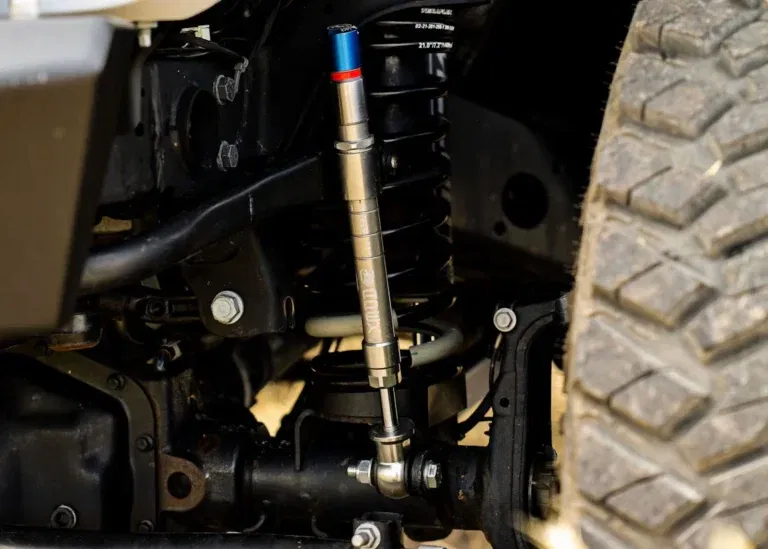

The patented autoLYNX completely eliminate the hassle of disconnecting and reconnecting your sway-bar with a simple twist of a knob. This allows to spend more time doing what you love and less time fighting with your Jeep.
FITS: 2007-2024 JEEP WRANGLER and 2020-2024 JEEP GLADIATOR
8.0″ STROKE:
For use with factory shocks including Rubicon, Sport and Sahara models.
Including JK/JL/JT. It’s an ideal fit for a Mojave when you’re keeping your stock shocks, even when lifted. This shorter link will make mounting easier on stock – 2″ lift kits. Typically no trimming required on factory wheel wells.
DO NOT USE WITH LONGER THAN 8.5″ STROKE SHOCKS
10.5″ STROKE:
For use with aftermarket shocks. If you plan on upgrading to longer shocks than factory supplied, use the 10.5? stroke autoLYNX.
This will most likely require trimming of aftermarket inner fender liners.
Mopar 2″ lift kits can use either the 8.0″/10.5″ stroke autoLYNX.
Signature Features:
– Disconnect/Reconnect your Sway Bar with a simple twist of a knob
– Induction Hardened, Hard Chromed Shaft
– Hard Anodized Body
– OE Style Vulcanized Rubber Bushings for extra long life that are designed and tooled specifically for the autoLYNX. It is not a generic bushing.
– The Upper Bushing has a special swivel for Sway Bar Swing
– Multiple length positions to allow for almost all possibilities of link fitment in terms of lift height.
NOTE: These links are designed for the front of the vehicle. Installing them in the rear is not an approved application and will void the warranty.
Fitment Guide | Install Instruction | Install Video

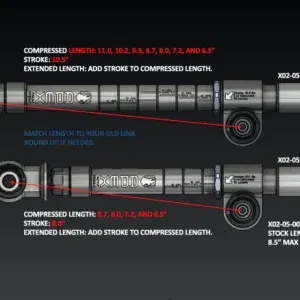

Part Number: X02-05-002 / X02-05-001
Fitment Notes:
– If you have a 1″-2.5″ lift installed with stock shocks with or without shock extension brackets and you don’t have bump stop extensions installed you will need to run the 8″ version (shock stroke length should not exceed 9.5″).
– 1.5″-2.5″ lift – If you do have at least 2″ bump stop extension installed with longer travel shocks you can use the 10.5″ version.
– 3″ LIFT and up, use 10.5 (must have at least 2″ bump stop extensions installed).
