Description

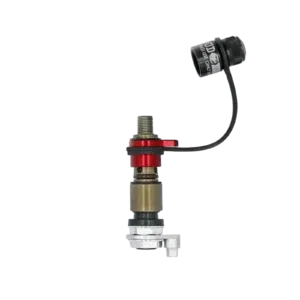

This innovative, fast deflation tire valve allows you to quickly deflate your tires in a matter of seconds.
XL Length
Here’s how it works:
- Unscrew the valve stem cover and place your preferred pressure gauge onto the valve.
- Now simply slide gate cover out and watch your air gauge real-time as the pressure drops.
- Slide the gate cover closed and replace the cap…you’re done.
The toggle action allows you to precisely throttle the air to hit your exact desired pressure.
It’s fast… very fast. You can expect tire deflation from 35 PSI TO 10 PSI IN LESS THAN 15 SECONDS. [Based on a 35” tire]
Features:
1) Toggle style vent
2) 1,000 hr salt spray
3) Viton seals are impervious to most any chemical and are UV/ozone resistant
4) TPMS mount [works with VS-650/950 style TPMS, see TPMS info]
5) Fits most any wheel by replacing the valve stem [see clearance info]
6) High grade aircraft 7075 aluminum is as strong as steel
7) Valve cap and lanyard included
8) No drilling needed!
Available in 2 sizes:
- Standard Length (for 15mm Valve Stem Depth)
- Appropriate for most wheels.
- XL Length (for 25mm Valve Stem Depth)
- Best for Deep Valve Stem Recess (e.g. Beadlocks)
- For some users, the XL Length is preferred as it allows for more clearance for your finger to pull out the Red Tab.
IMPORTANT: You need to measure your valve stem wells before you order your RPVs in order to determine which length you will need. Please do not send us an email asking which length to buy as our answer will be to measure your wheel. Here is a video that demonstrates that process: HOW TO MEASURE YOUR VALVE STEM WELL
IMPORTANT: If you have OEM Toyota/Japanese TPMS Sensors you will need to purchase the TPMS ADAPTER kit
Wheel Fitments
- This product is not compatible with AEV wheels
- Some examples of wheels that require the XL:Black Rhino Rift
KMC 235 (Grenade)
KMC 229 (Machete)
Method 701

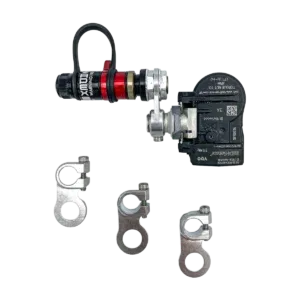

Ford Raptor OEM wheels?[seal flip needed for extra clearance] - Tyre Pressure Monitoring System (TPMS) compatible
- This includes the standard TPMS adaptor for American Vehicles (RAM / Chev / F-Truck / GMC / Jeep).
- If you have a Toyota vehicle, please check out our TPMS Adapter Kit.
Watch the Install video HERE
Part Number: X02-02-003 / X02-02-004 / X02-02-020
